Stratocaster Wiring Kit – HSS Layout (Alpha Pots)
£22.99
• HSS Strat-style wiring kit with manual bridge humbucker coil-splitting.
• Features a push-pull pot to switch between humbucker and single-coil bridge tones.
• Alpha 500K/250K pots and OP Red 0.047uF capacitor.
• Includes wiring diagram and 24 month warranty
In stock
Stratocaster Wiring Kit – HSS Coil Split Layout
The Guitar Anatomy Stratocaster Wiring Kit – HSS Coil Split Layout is designed for maximum versatility, allowing you to switch between powerful humbucking tones and classic single-coil clarity. This configuration utilizes a push-pull potentiometer to manually split the bridge humbucker, offering an expanded tonal palette without changing the look of your guitar.
Designed to balance the different requirements of humbuckers and single-coils, this kit features a 500K volume pot to allow the humbucker to reach its full frequency potential, while maintaining traditional 250K values for the tone controls. Each kit includes vintage-style cloth push-back wire for a clean internal aesthetic and professional finish.
Part of the Guitar Anatomy wiring kit range, each kit is supplied with a clear wiring diagram for straightforward installation.
The Kit Includes
1 × Alpha 500K Push-Pull Pot (Volume – Coil Split)
2 × Alpha 250K Full Size Audio Taper Pots (Tone)
1 × OP Red 0.047uF Smooth Tone Audio Capacitor
Vintage Style Cloth Covered Guitar Wire – 22 AWG
5-Way Blade Pickup Selector Switch
GA Jack Socket

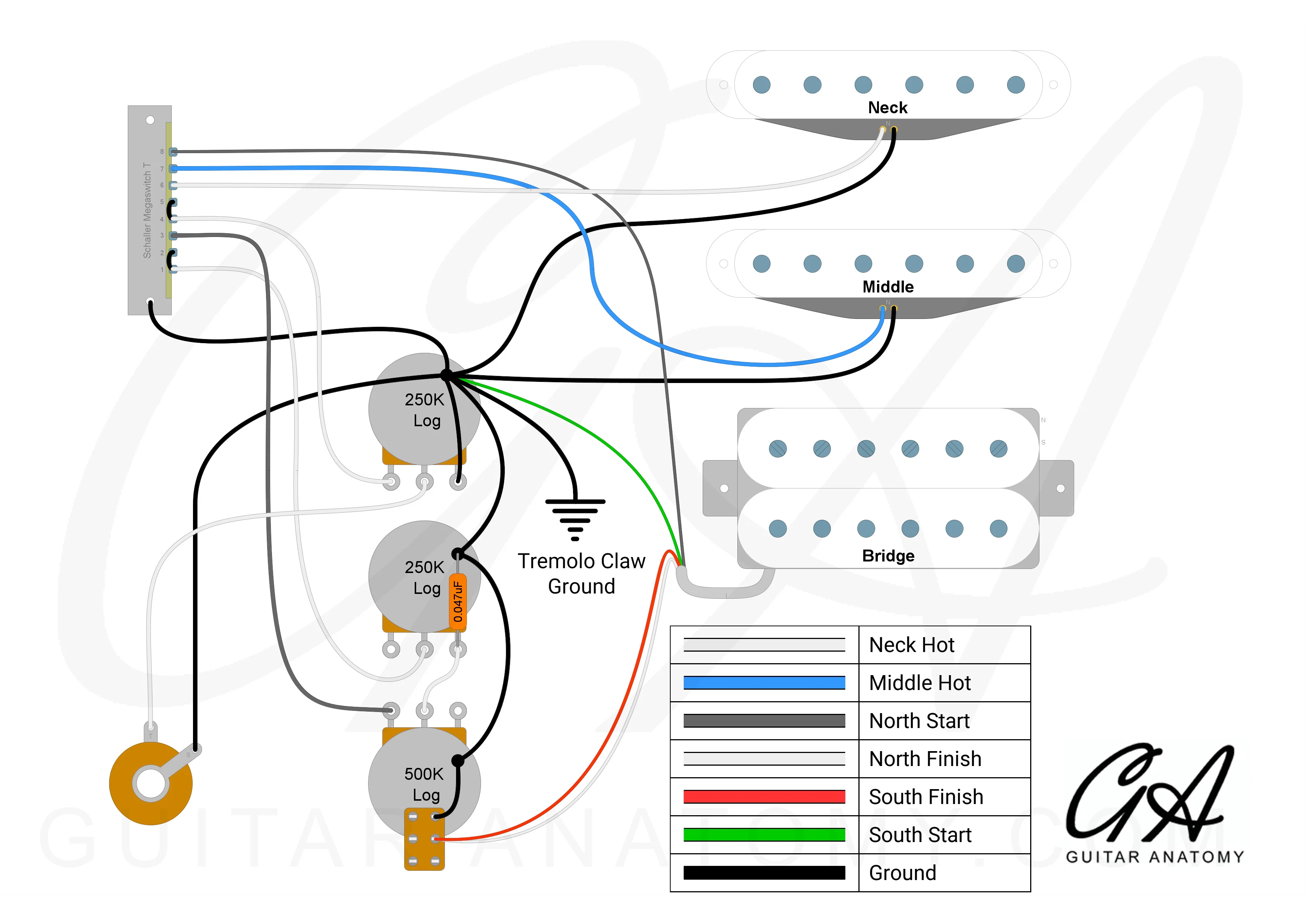

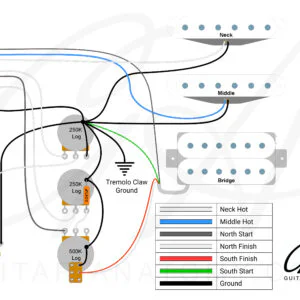

Wiring Diagram
We back all of our kits with a 24 month warranty.
