Guitar Treble Bleed Circuit – Volume Pot Wiring Mod

From: £5.99

Treble bleed circuit for electric guitar volume controls
Helps retain treble clarity when reducing guitar volume
Ideal for guitar wiring mods, upgrades and custom electronics
Available in three different capacitor and resistor configurations

Guitar Treble Bleed Circuit – Volume Pot Wiring Mod

This guitar treble bleed circuit is a simple and effective modification designed to help retain high-frequency clarity when rolling back your guitar’s volume control. On many electric guitars, reducing the volume can also cause a noticeable loss of treble, resulting in a darker or muddier tone.

A treble bleed circuit helps counteract this by allowing higher frequencies to pass through as the volume is reduced, helping to maintain a clearer and more consistent sound across the volume control’s range.

Each circuit features a pre-wired capacitor and resistor, making it a convenient option for guitar wiring upgrades, repairs and custom electronics projects. The circuit is designed to be soldered across the input and output terminals of a guitar’s volume potentiometer.

Available in three different configurations, allowing you to choose the circuit that best suits your guitar’s pickups, controls and preferred volume response.

Key Features

Helps retain treble clarity when rolling back guitar volume
Pre-wired capacitor and resistor circuit
Designed for installation on guitar volume potentiometers
Suitable for single coil and humbucker guitar wiring applications
Available in three capacitor and resistor configurations
Ideal for repairs, upgrades and custom wiring projects

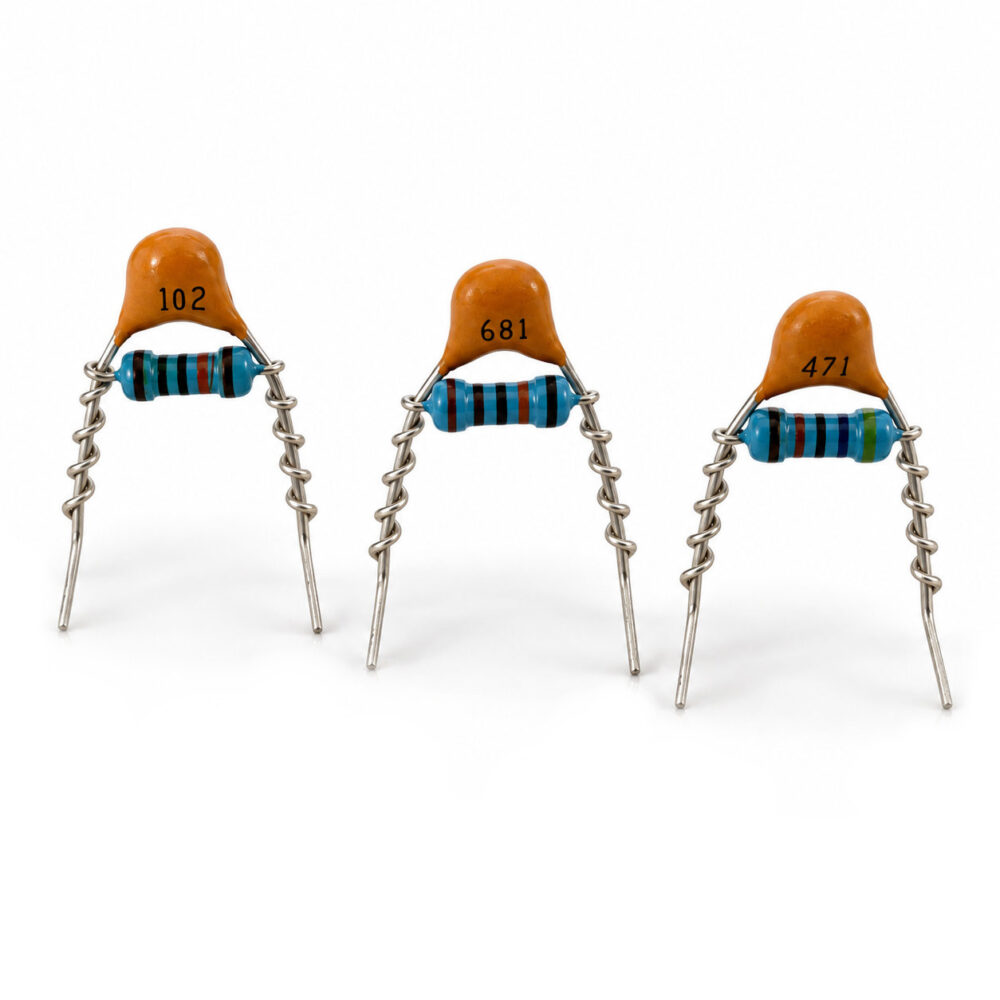

Available Variations

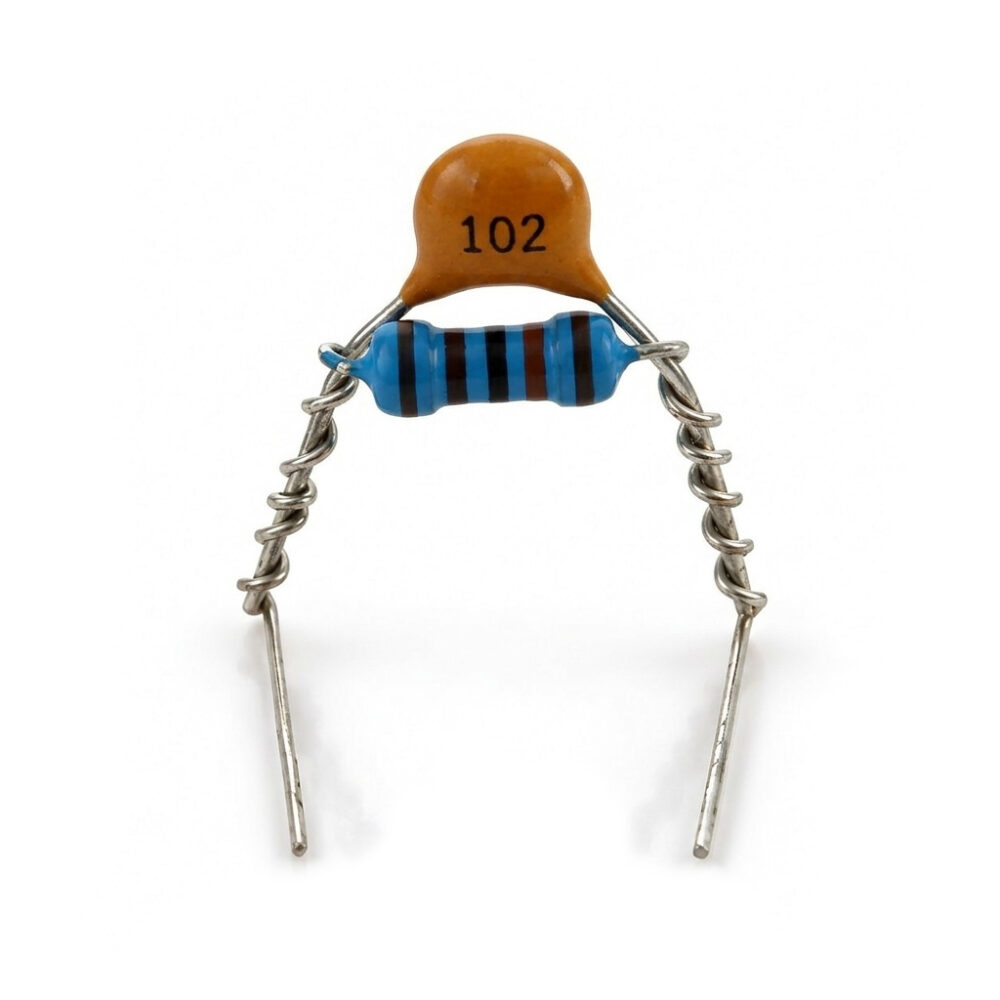

102 Capacitor – 1nF (1000pF)

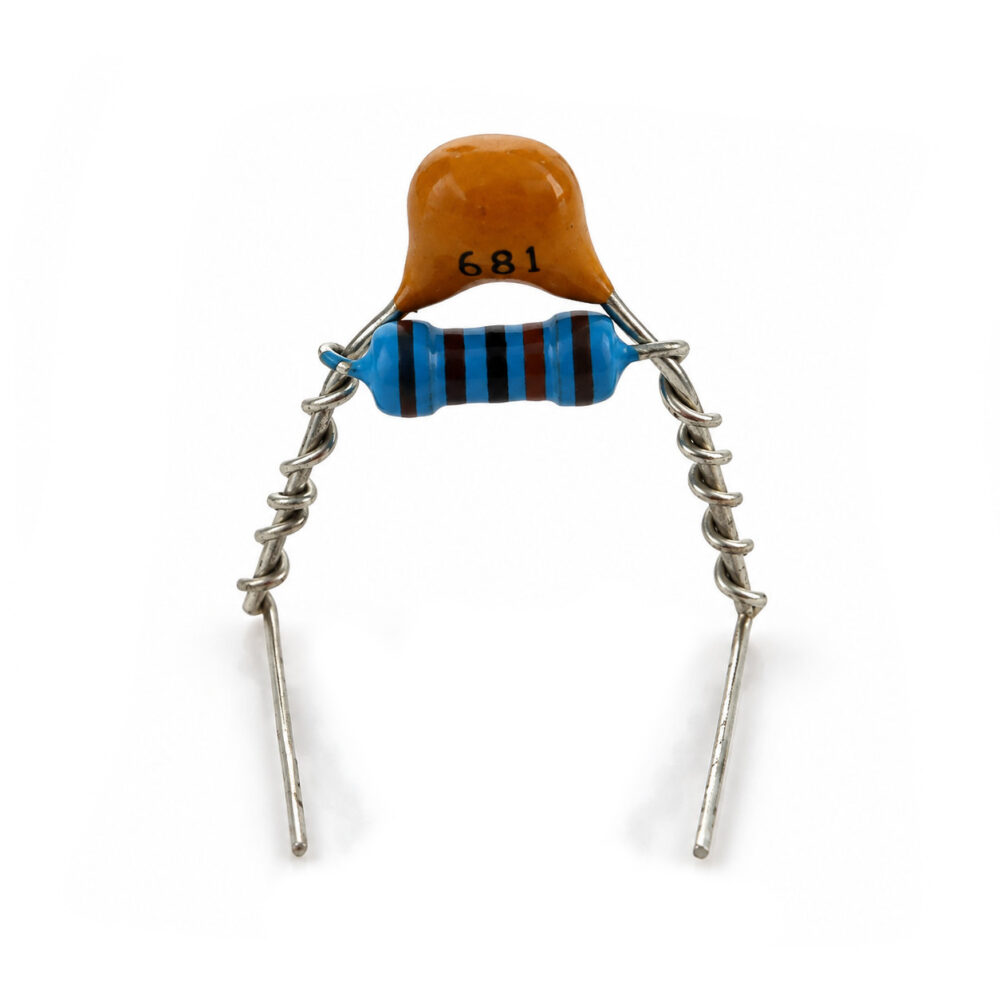

681 Capacitor – 680pF

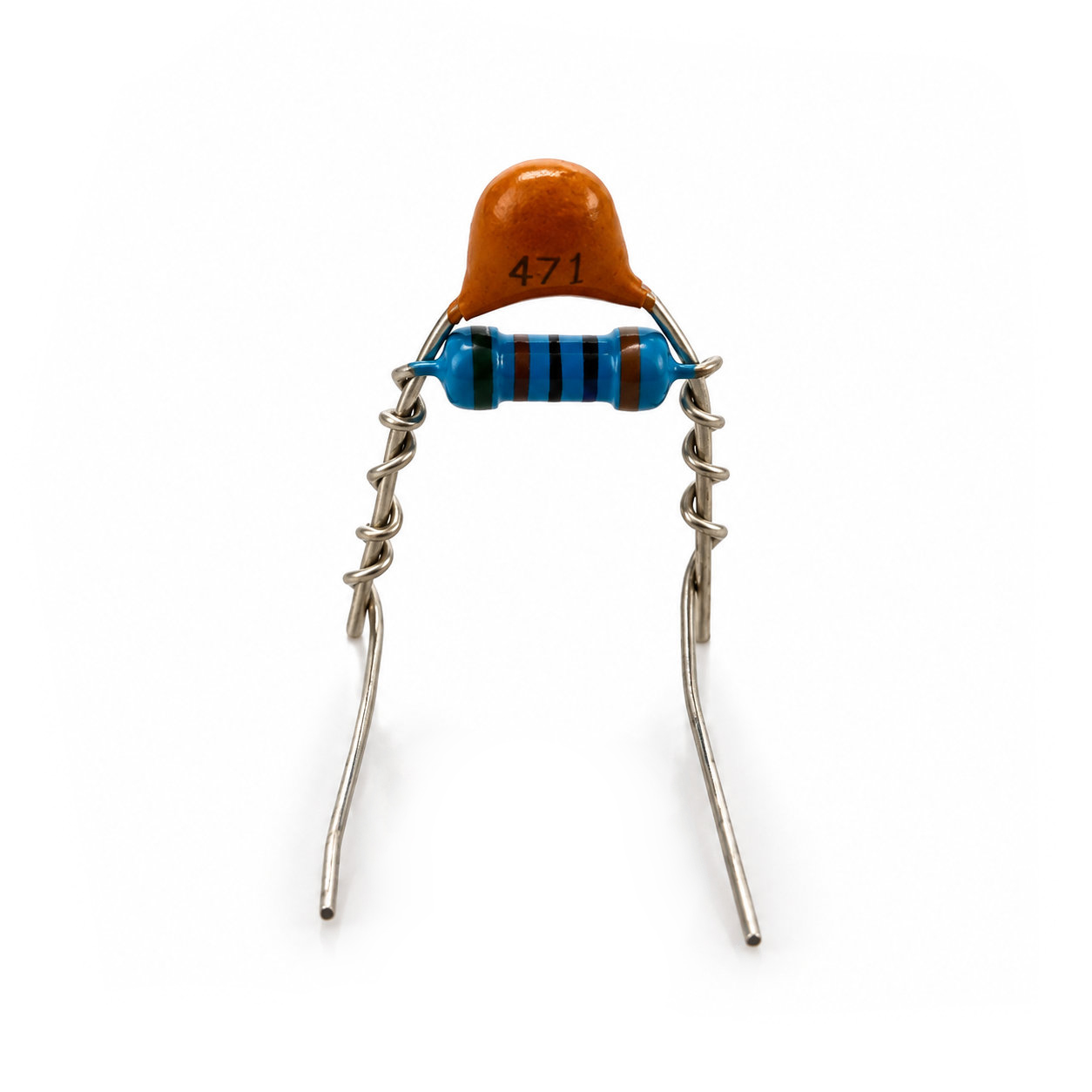

471 Capacitor – 470pF

The different capacitor values allow for varying degrees of high-frequency bypass, helping you tailor the response of your guitar’s volume control to your preferred setup.
