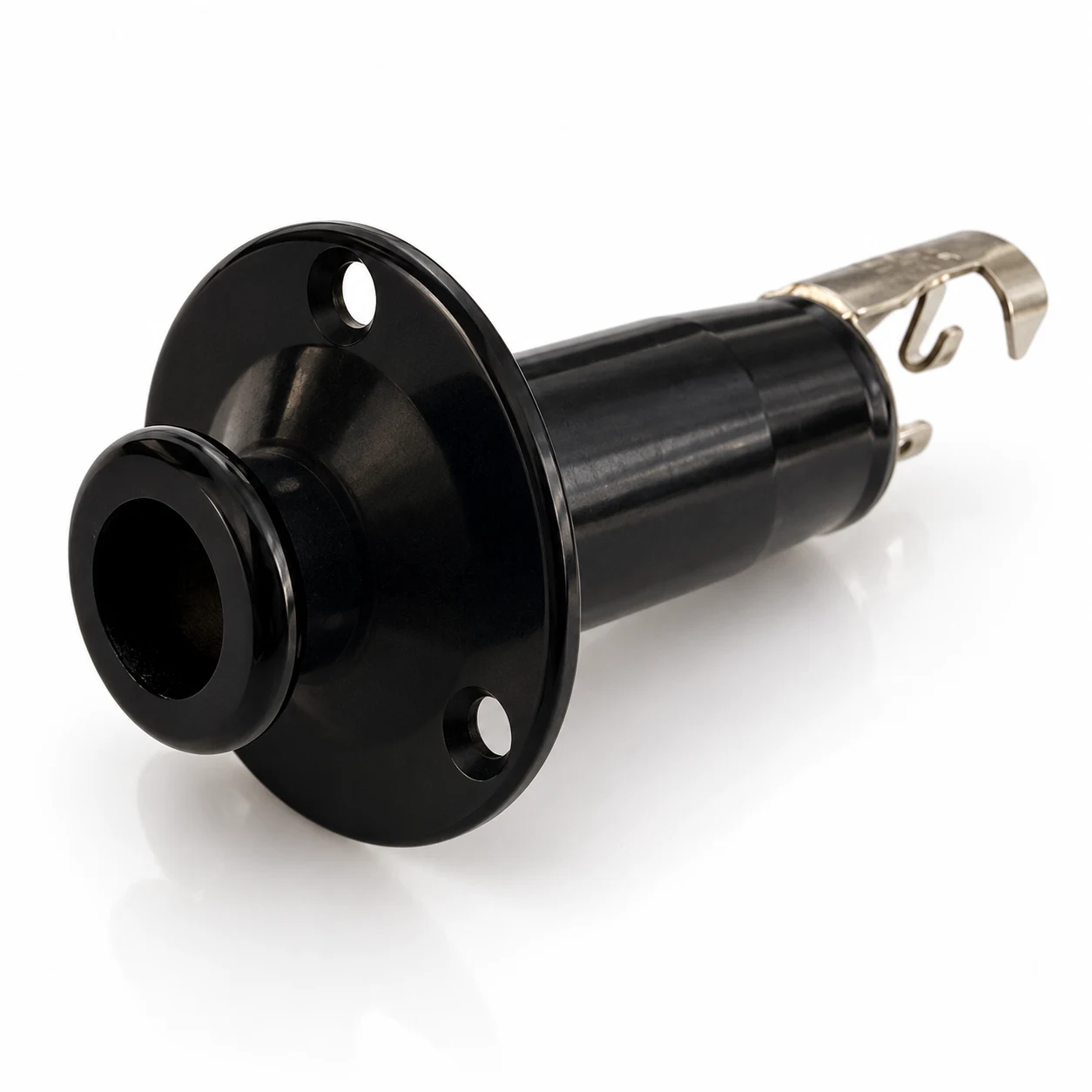

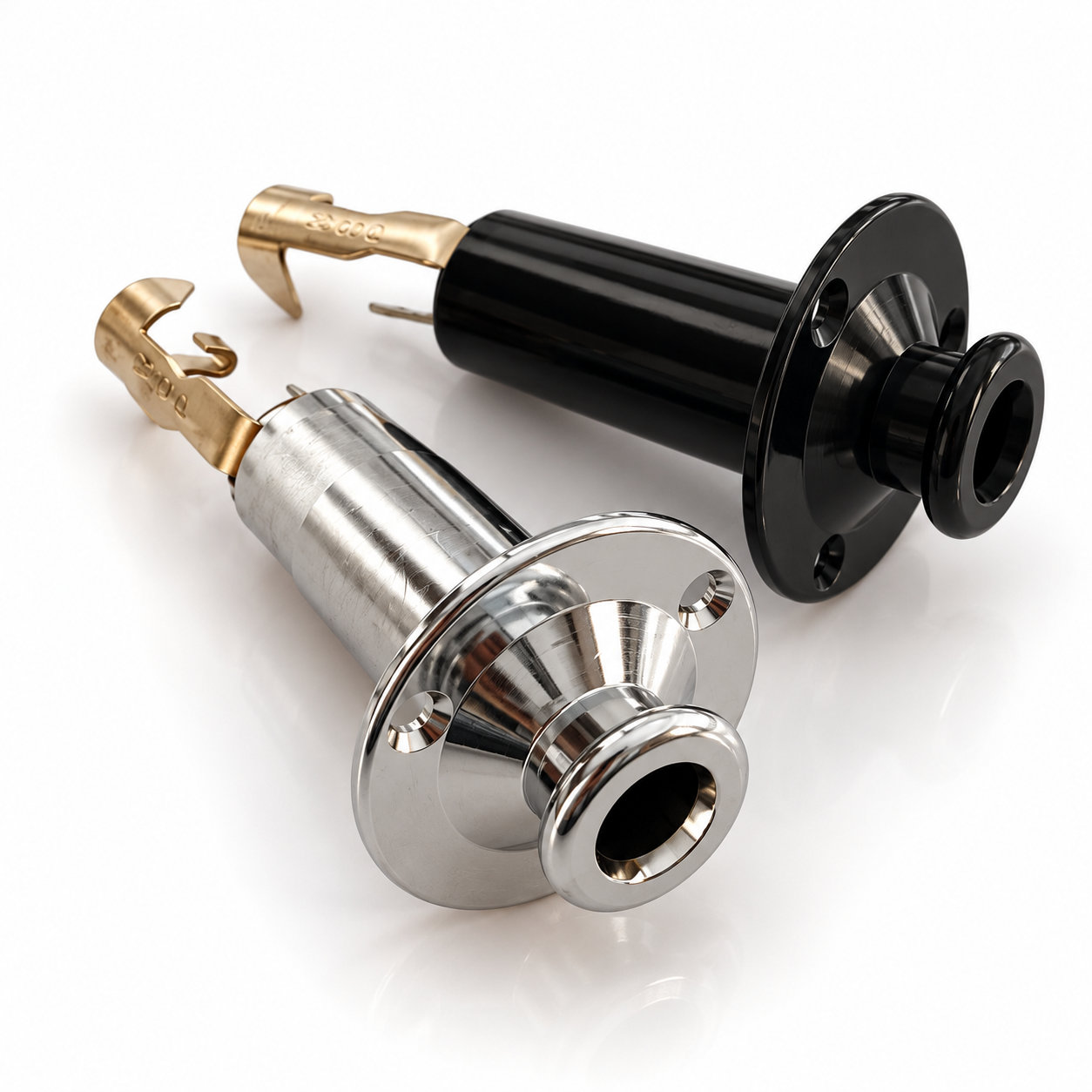

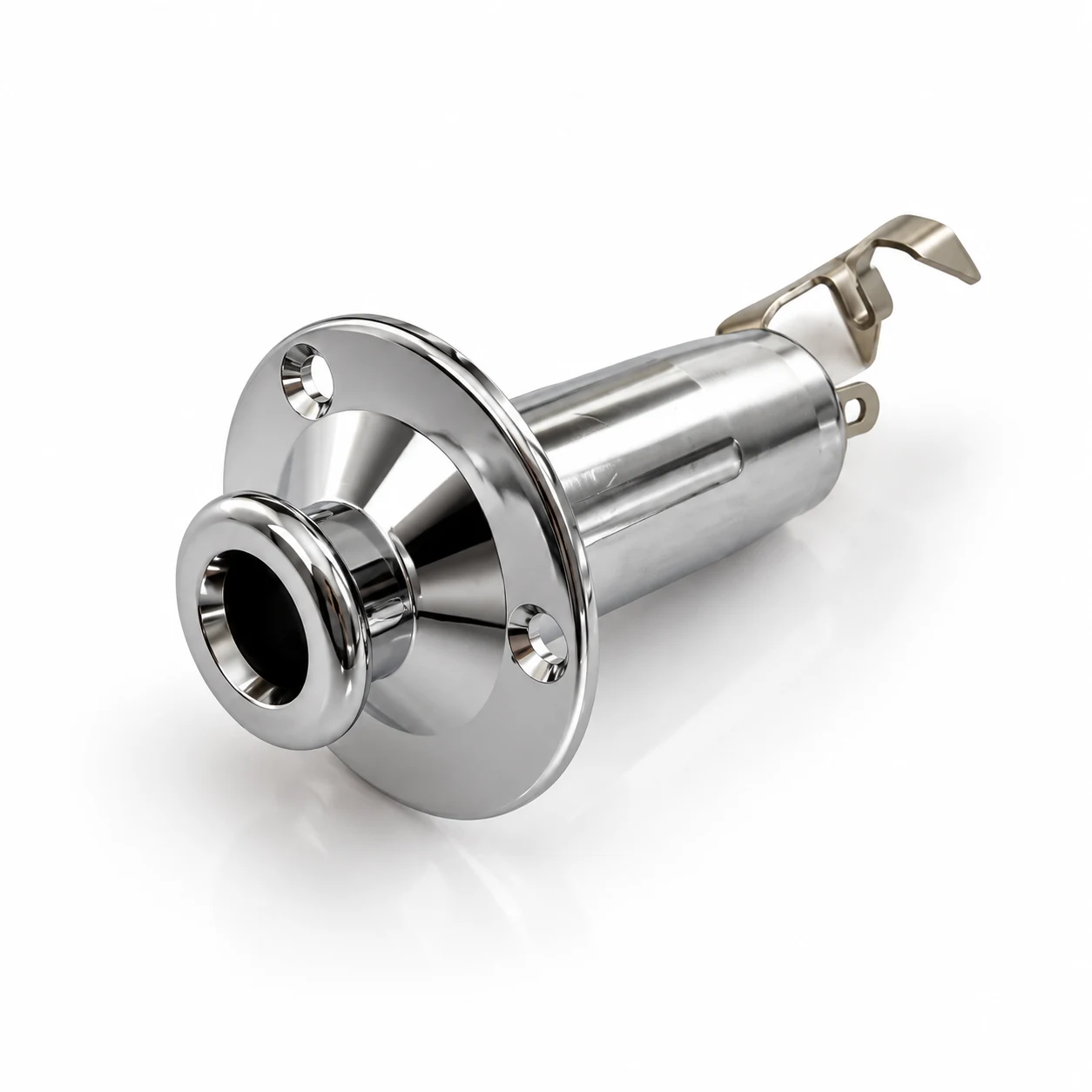

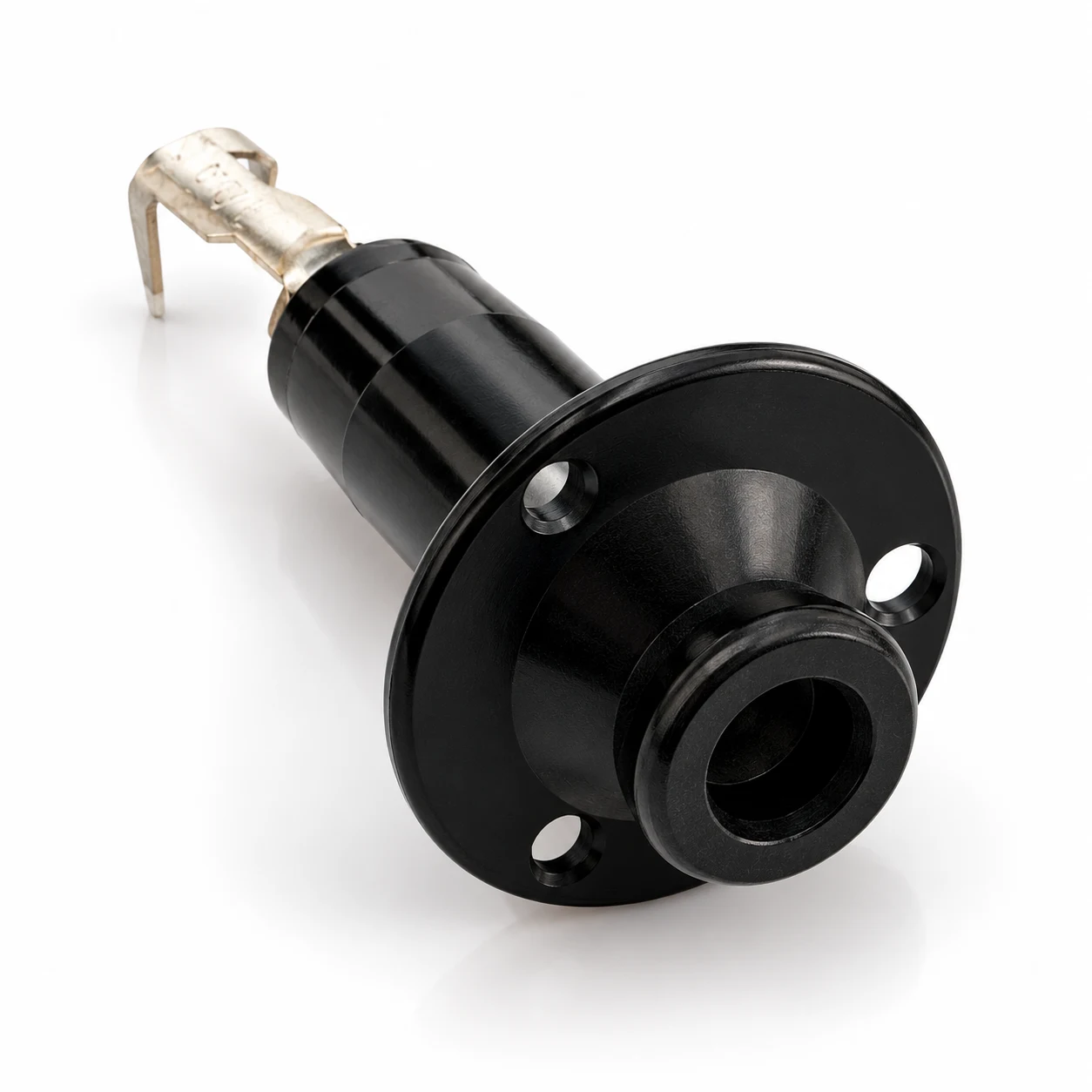

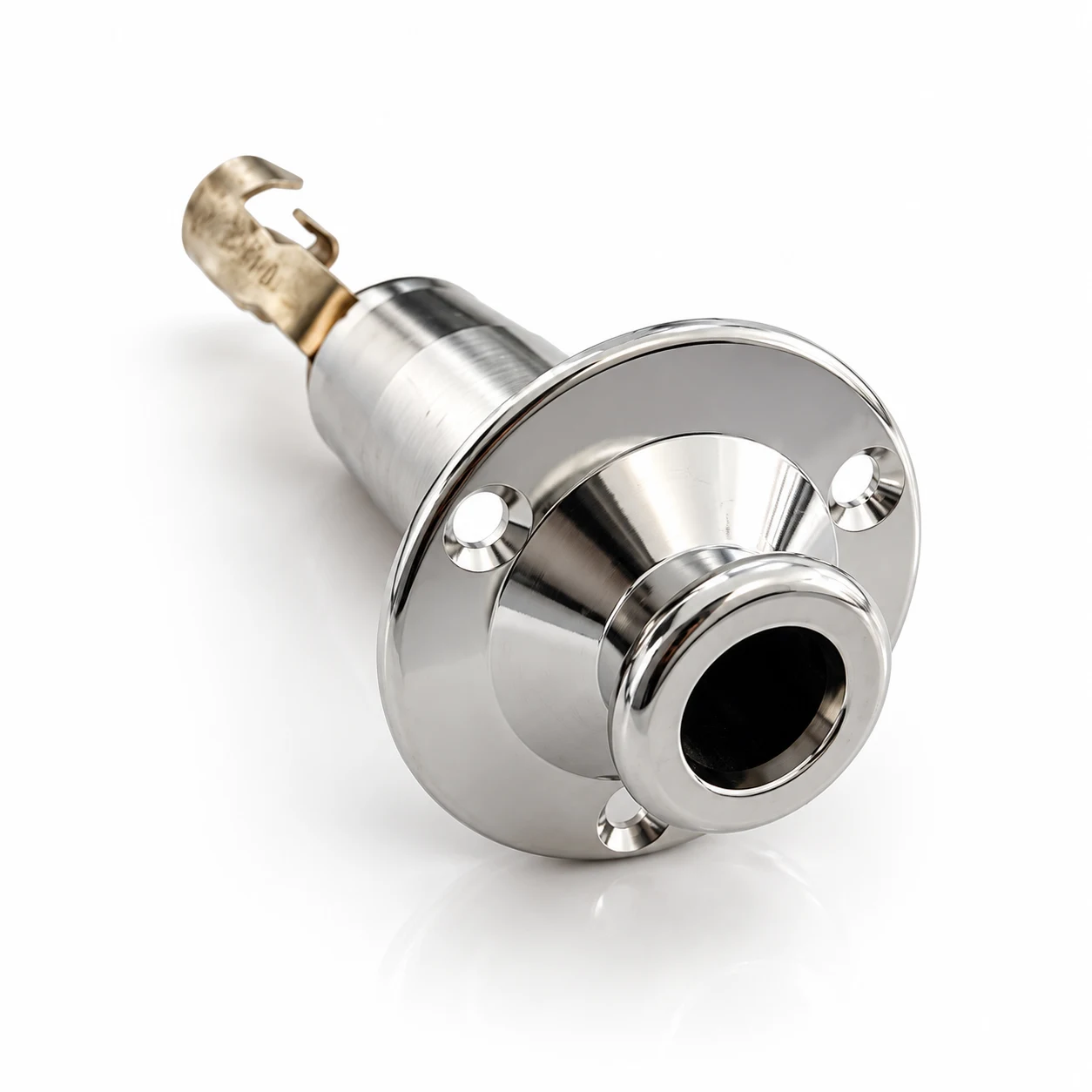

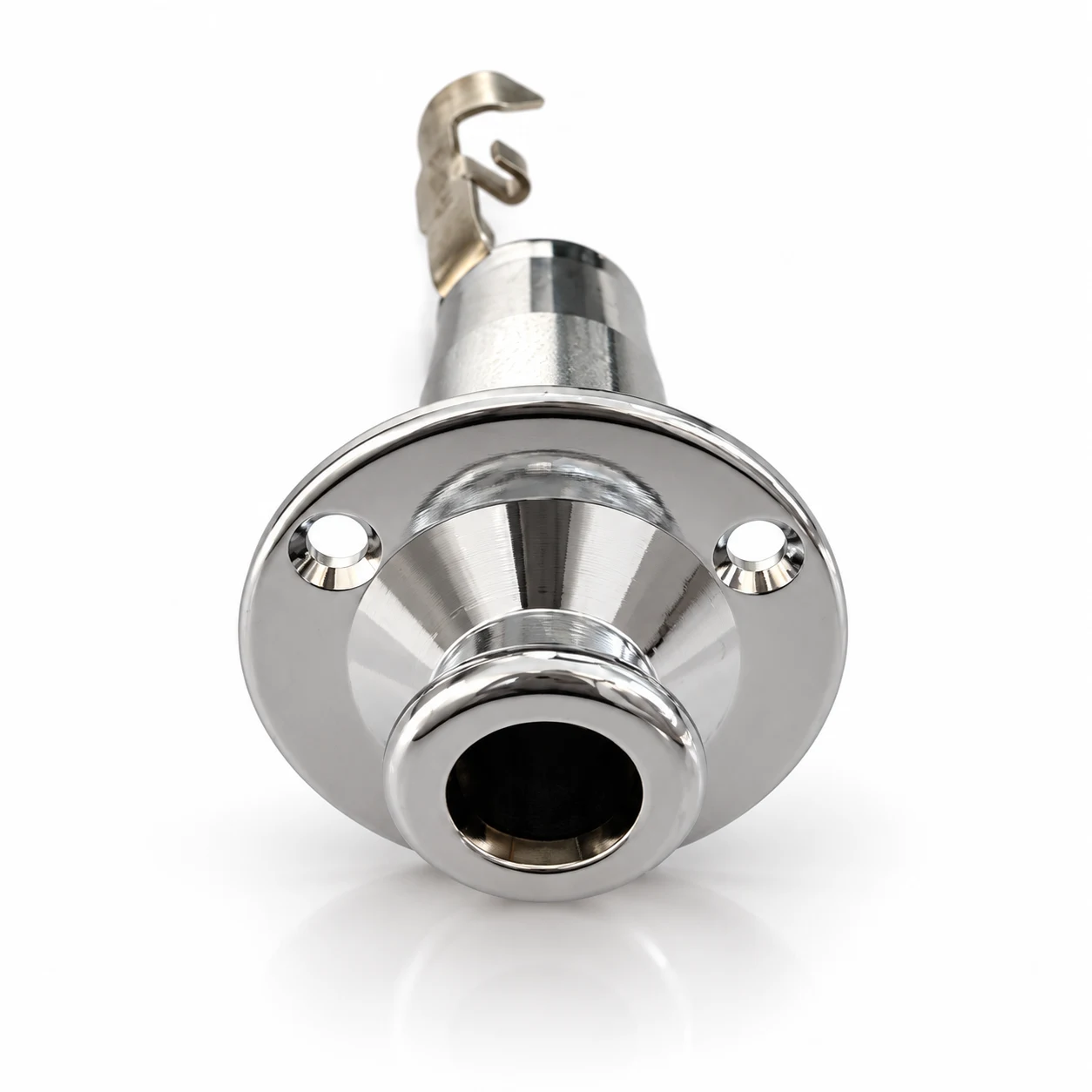

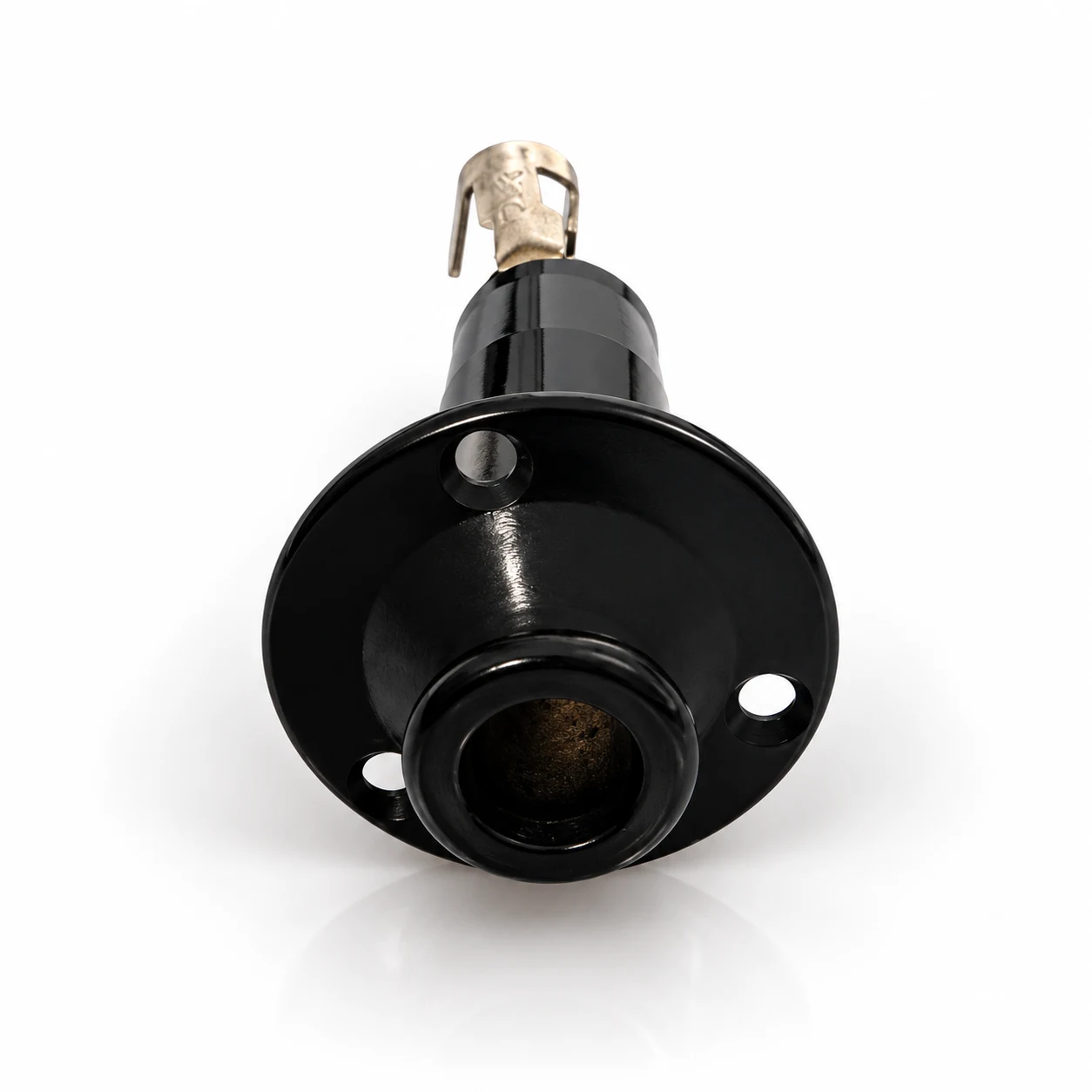

Acoustic Guitar Endpin Jack Socket – 6.35mm (1/4″) Stereo Screw Mount

From: £9.99

Stereo endpin jack socket for acoustic and electro-acoustic guitars
Three-screw mounting flange for secure installation
Screw-mount design
Available in Chrome and Black finishes

Acoustic Guitar Endpin Jack Socket – 6.35mm (1/4″) Stereo Screw Mount

Designed for acoustic and electro-acoustic guitars, this screw-mount endpin jack socket provides a 6.35mm (1/4″) output connection for acoustic pickup systems while also functioning as an integrated strap button.

The socket features a stereo (TRS) connection and accepts standard 6.35mm (1/4″) guitar leads, including conventional mono (TS) jack plugs. This makes it suitable for a wide range of acoustic pickup configurations, including compatible passive pickups and active preamp systems.

Unlike traditional threaded endpin jack sockets, this design uses a three-screw mounting flange to secure the socket directly to the guitar body. The wiring can be soldered before installation, avoiding the need to rotate the socket during fitting and reducing the risk of twisting or damaging soldered connections.

The integrated strap button provides a secure attachment point for a guitar strap without requiring an additional fitting. Available in Chrome and Gold finishes, the socket is suitable for acoustic guitar repairs, pickup installations and custom electro-acoustic builds.

Specifications

Type: Acoustic guitar endpin jack socket
Jack Size: 6.35mm (1/4″)
Socket Configuration: Stereo (TRS)
Compatible Plugs: Standard 6.35mm (1/4″) mono (TS) and stereo (TRS) jack plugs
Mounting: Three-screw flange
Strap Button: Integrated
Finish Options: Chrome / Gold
Application: Acoustic and electro-acoustic guitar pickup systems
Included: Endpin jack socket and mounting screws

Compatibility

Suitable for acoustic and electro-acoustic guitars fitted with compatible passive or active pickup systems requiring a 6.35mm (1/4″) output jack.

The stereo socket can be wired for mono or stereo applications depending on the pickup system. In many active acoustic pickup configurations, the additional stereo contact is used for battery switching when a standard mono guitar lead is inserted.

The three-screw mounting flange also makes this socket suitable for certain acoustic guitar repairs and conversions where a conventional threaded endpin socket is being replaced.

Please check the mounting dimensions and pickup wiring requirements before purchasing. Soldering is required for installation.
