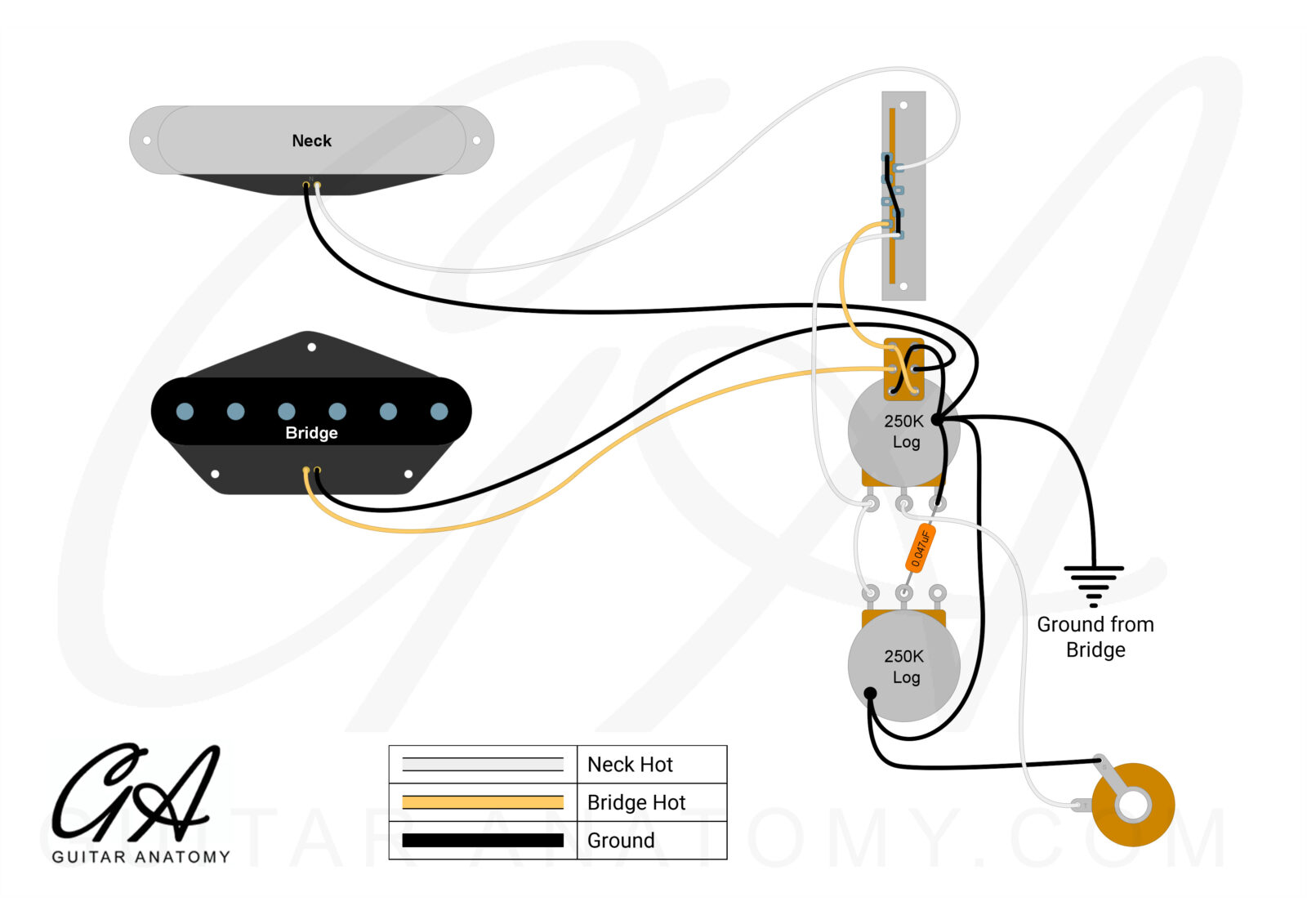

Telecaster Out-of-phase Wiring Diagram - Guitar Anatomy

Telecaster Wiring Kit – Out-of-Phase Layout – Pro (CTS, Switchcraft, Mallory)

£39.99

Pro-tier Telecaster kit with a premium push-pull bridge phase reversal mod.
Delivers the legendary “hollow” quack heard on the earliest Led Zeppelin records.
Features elite CTS 250K pots and USA Mallory 150 series capacitor.
Includes wiring diagram and 24 month warranty.

In stock

Description
FAQ

Telecaster Wiring Kit – Series Mod (Push-Pull) – Pro (CTS, Switchcraft, Mallory)

The Guitar Anatomy Telecaster Wiring Kit – Out-of-Phase Layout – Pro upgrades your instrument with elite electronics while adding a versatile bridge phase-switching modification. This version features premium CTS pots and a USA Mallory 150 capacitor to ensure maximum signal clarity and a smooth, musical control response.

By utilizing a professional-grade push-pull pot to put the bridge pickup out of phase with the neck, this kit provides access to the biting, nasal mid-range tones synonymous with Jimmy Page’s legendary “Dragon” Telecaster. Built with industry-standard hardware, this Pro kit is designed for the rigorous demands of professional stage and studio use.

Part of the Guitar Anatomy wiring kit range, each Pro kit is supplied with a clear wiring diagram to support installation.

The Pro Kit Includes

1 × CTS 250K Full Size Audio Taper Pot (Volume)
1 × Pro Spec 250K Push-Pull Pot (Tone – Out-of-Phase)
1 × USA Mallory 150 Series 0.047uF Capacitor
Vintage Style Cloth Covered Guitar Wire – 22 AWG
Professional Spec 3-Way Blade Pickup Selector Switch
Switchcraft Jack Socket
Wiring Diagram

We back all of our kits with a 24 month warranty.
