Telecaster Wiring Kit – Out-of-Phase Layout (Alpha Pots)

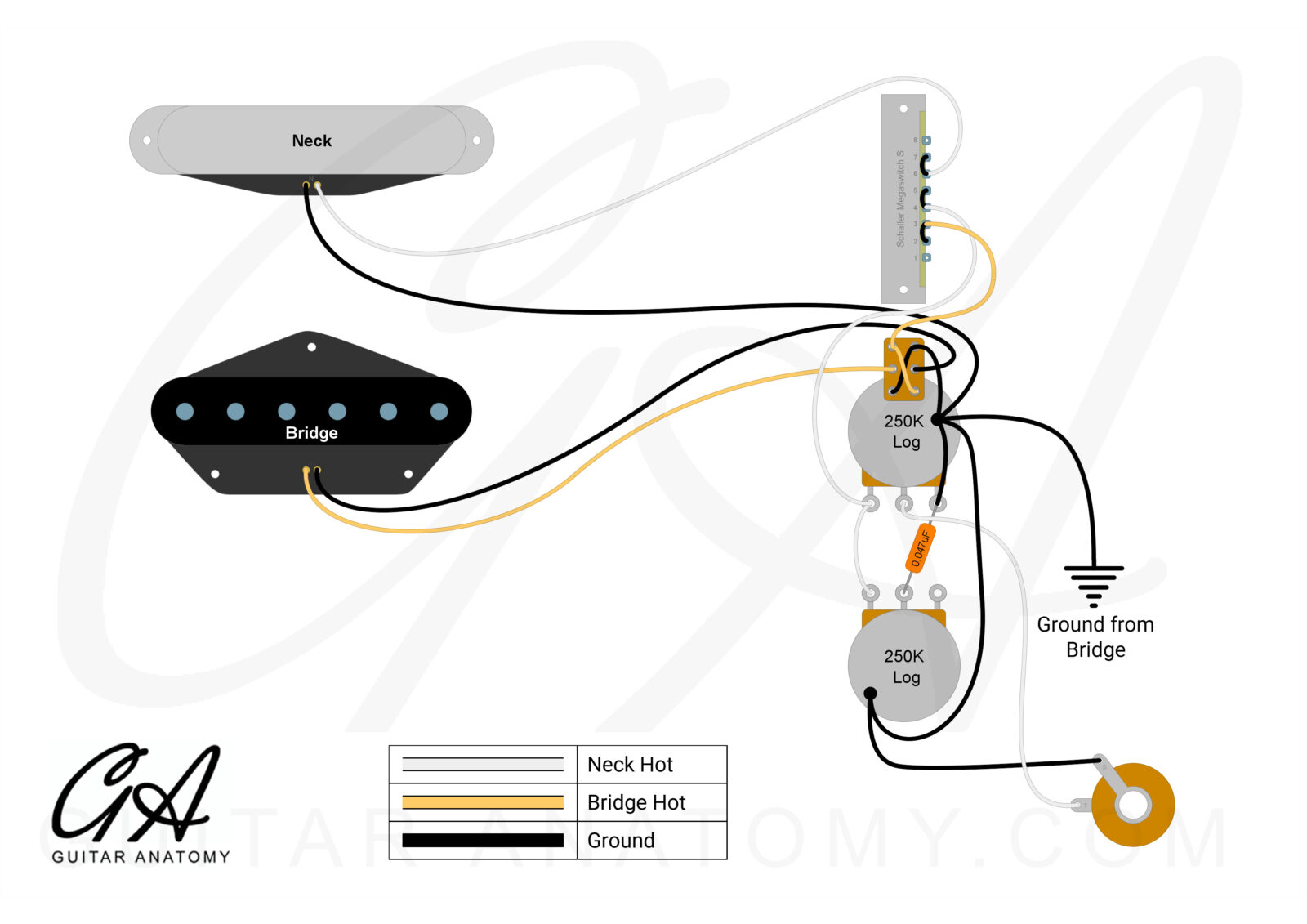

Telecaster Out-of-phase Wiring Diagram - Guitar Anatomy

Telecaster Wiring Kit – Out-of-Phase Layout (Alpha Pots)

£19.99

Telecaster-style wiring kit with a push-pull option to reverse the bridge pickup phase.
Recreates the iconic, filtered “hollow” tones famously used by Jimmy Page.
Alpha 250K pots and OP Red 0.047uF smooth tone capacitor.
Includes wiring diagram and 24 month warranty.

In stock

Description
FAQ

Telecaster Wiring Kit – Out-of-Phase Layout (Alpha Pots)

The Guitar Anatomy Telecaster Wiring Kit – Out-of-Phase Layout expands the tonal palette of the traditional Telecaster by allowing you to manually reverse the phase of the bridge pickup. This modification is engaged via a push-pull potentiometer, offering a unique, “hollowed-out” nasal tone when the bridge and neck pickups are selected together.

When the push-pull is in the standard position, your guitar retains its classic Telecaster wiring. Engaging the switch flips the bridge pickup out of phase with the neck, producing the thin, biting “quack” famously associated with Jimmy Page’s early Led Zeppelin recordings. It is a perfect tool for adding a distinct, filtered character that typical Tele setups can’t reach.

Part of the Guitar Anatomy wiring kit range, each kit is supplied with a clear wiring diagram for straightforward installation.

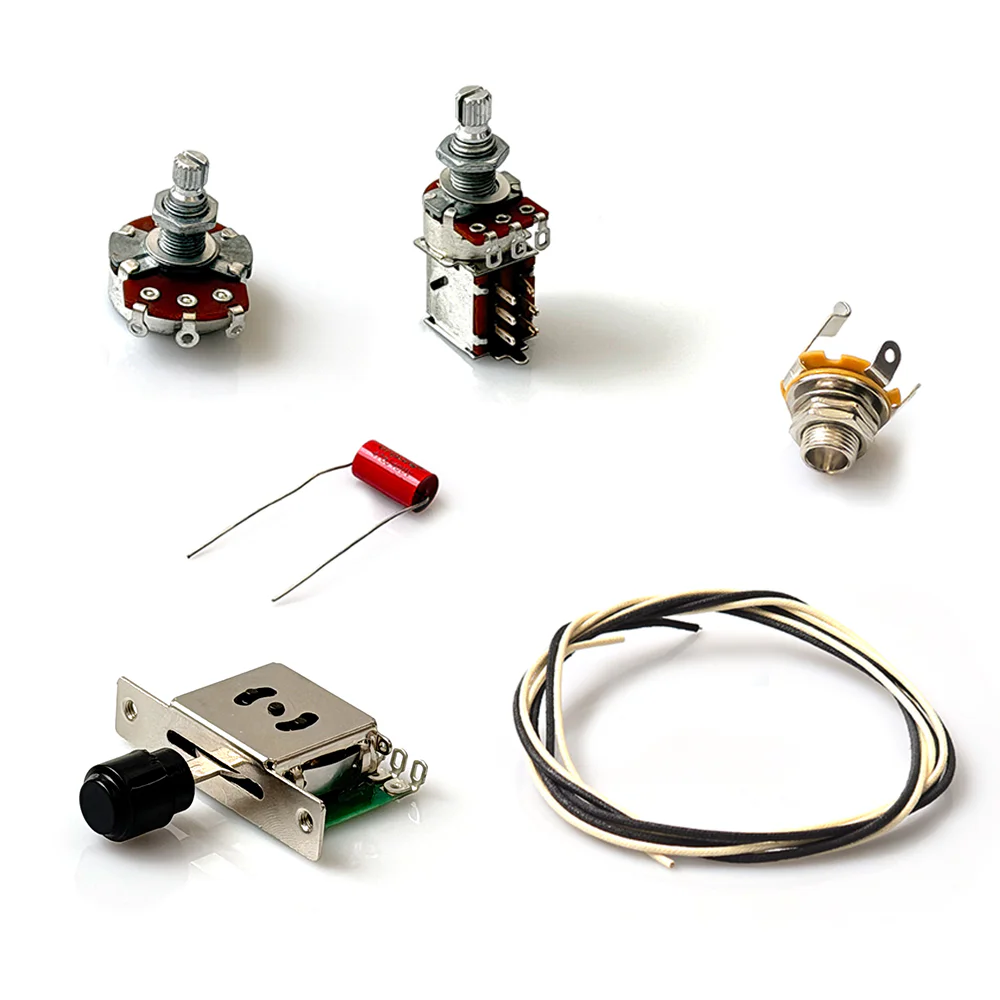

The Pro Kit Includes

1 × Alpha 250K Full Size Audio Taper Pot (Volume)
1 × Alpha 250K Push-Pull Pot (Tone – Out-of-Phase)
1 × OP Red 0.047uF Smooth Tone Audio Capacitor
Vintage Style Cloth Covered Guitar Wire – 22 AWG
3-Way Blade Pickup Selector Switch
GA Jack Socket
Wiring Diagram

We back all of our kits with a 24 month warranty.
