Telecaster Wiring Kit – HS Layout – Standard (Alpha Pots)

Telecaster Wiring Kit – HS Layout – Standard (Alpha Pots) - Image 2

Telecaster Wiring Kit – HS Layout – Standard (Alpha Pots)

Name: Telecaster Wiring Kit – HS Layout – Standard (Alpha Pots)
SKU: WK-TLHS-STD
Price: 19.99 GBP
Availability: InStock

£19.99

• HS Tele wiring kit with 470K load balancing resistor
• Optimised for neck humbucker and bridge single-coil setups
• Alpha 250K pots and OP Red 0.047uF capacitor
• Includes wiring diagram and 24 month warranty

In stock

Description
FAQ

Telecaster Wiring Kit – HS Layout – Standard (Alpha Pots)

The Guitar Anatomy Telecaster Wiring Kit – HS Layout is specifically engineered for guitars featuring a neck humbucker paired with a bridge single-coil.

This configuration addresses the common tonal imbalance found in HS setups by incorporating a 470K resistor mod. This allows each pickup to operate against a more appropriate load value, helping the neck humbucker retain clarity and openness while preventing the bridge single-coil from sounding overly bright or harsh.

Designed as a dependable, high-quality upgrade, this kit delivers balanced output and a smooth, usable control taper. Vintage-style cloth push-back wire is included for a clean internal finish.

Part of the Guitar Anatomy wiring kit range, each kit is supplied with a clear wiring diagram for straightforward installation.

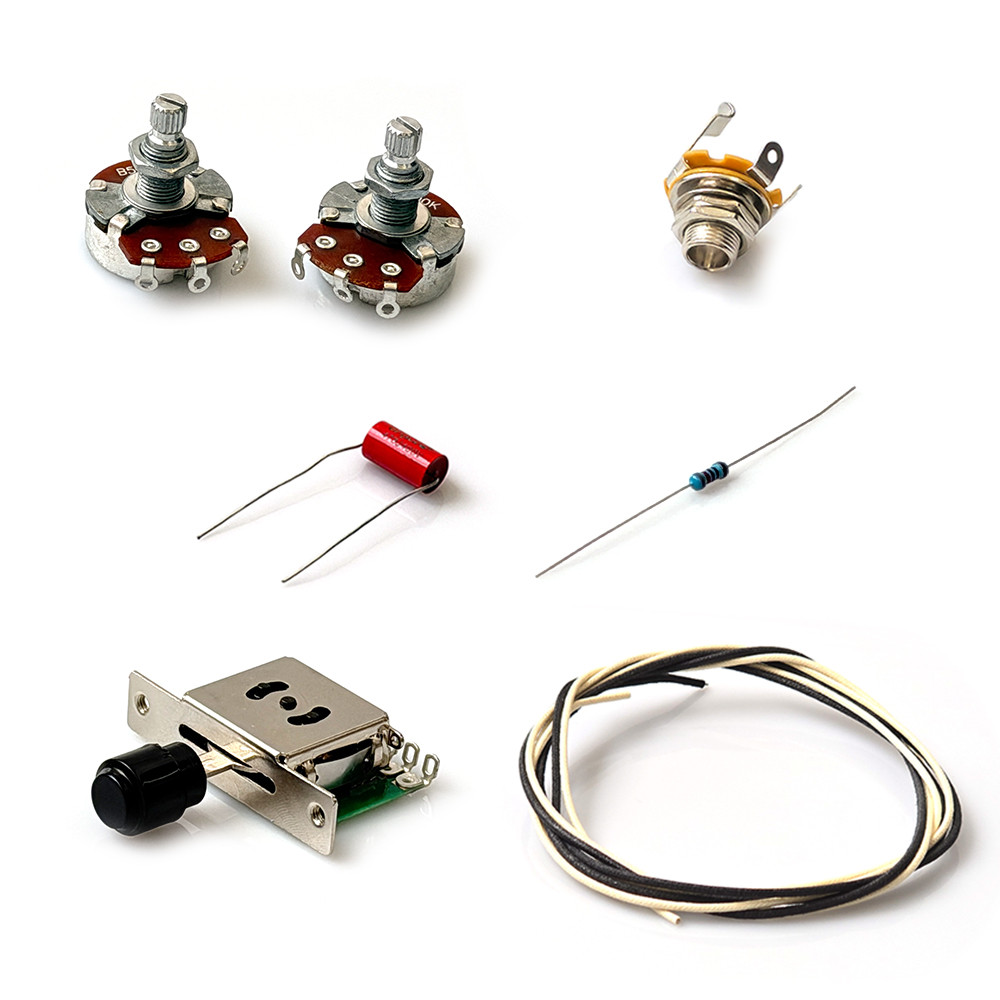

The Kit Includes

• 2 × Alpha 250K Full Size Audio Taper Pots
• OP Red 0.047uF Smooth Tone Audio Capacitor
• 470K Resistor (HS Load Mod)
• Vintage Style Cloth Covered Guitar Wire – 22 AWG
• GA 3-Way Pickup Selector Switch

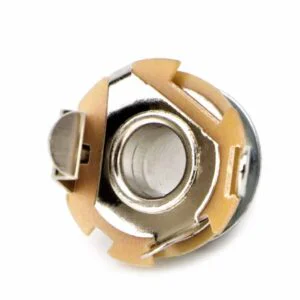

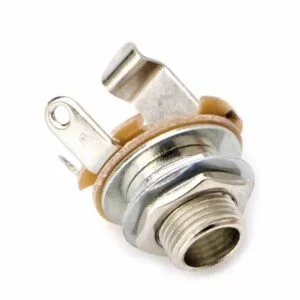

• GA Jack Socket

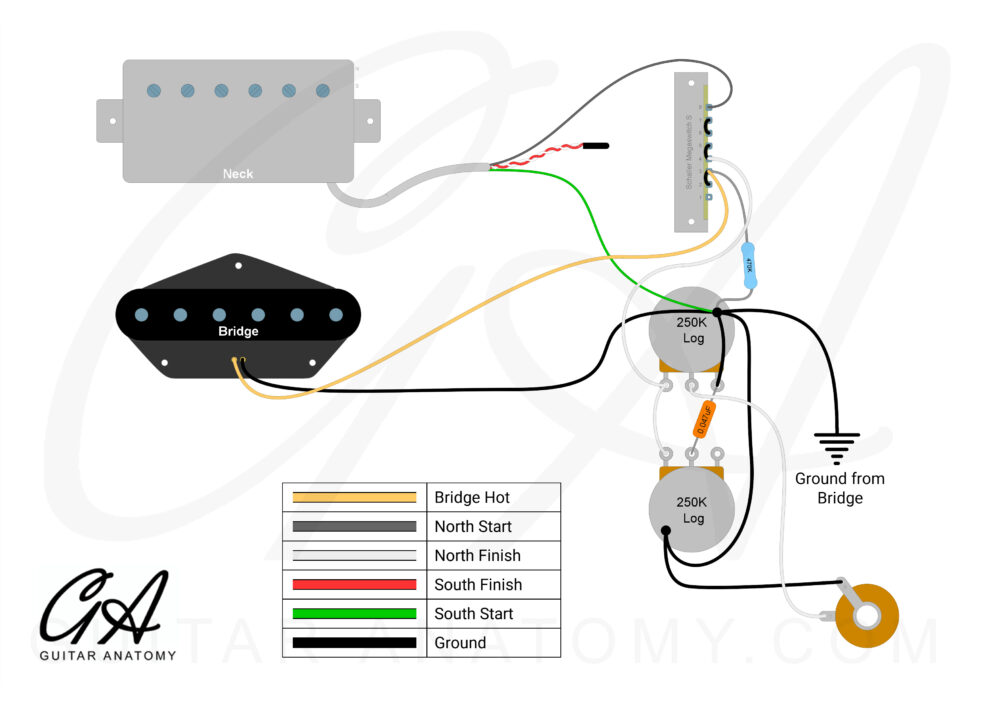

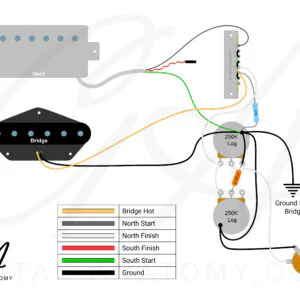

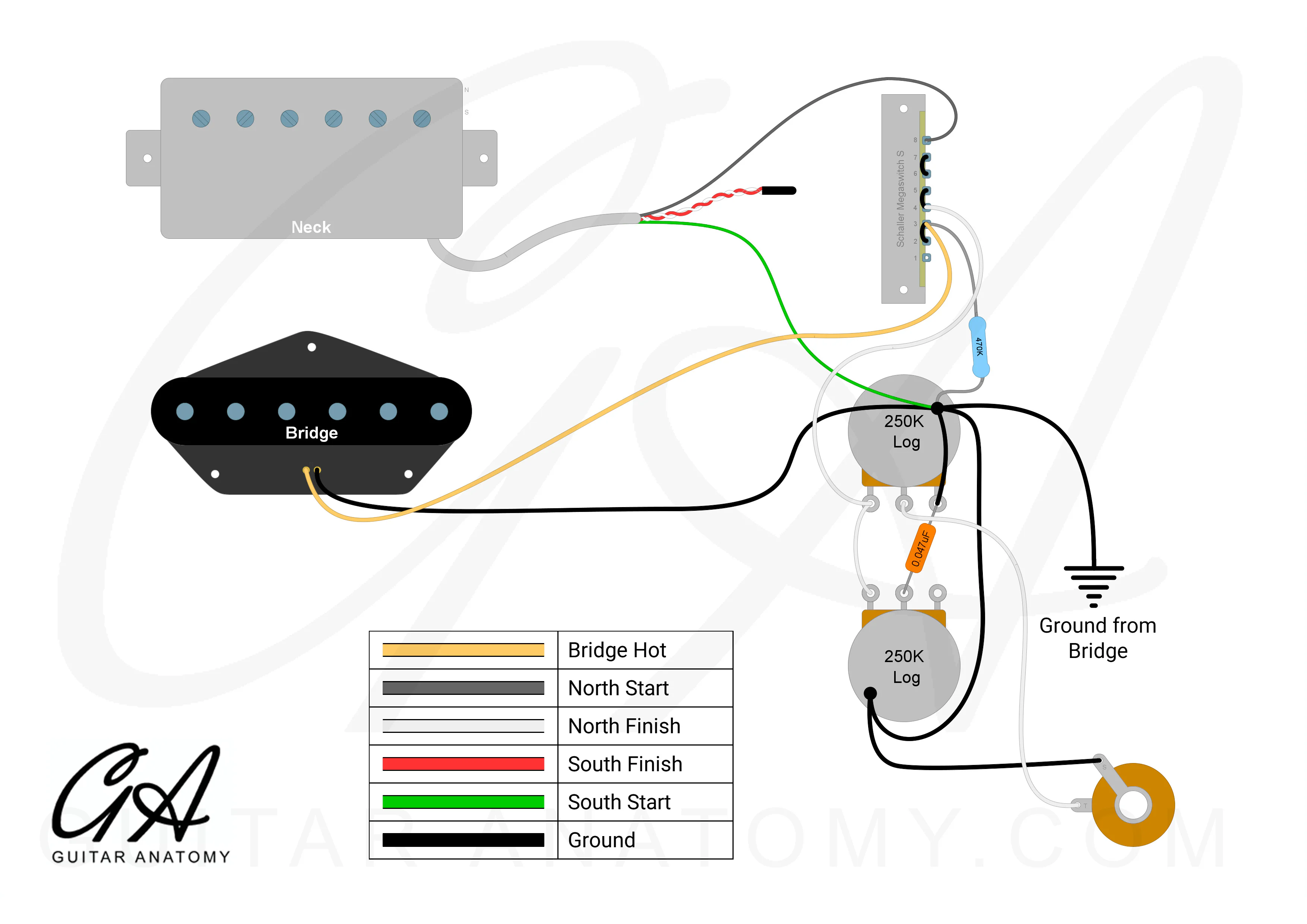

• Wiring Diagram

We back all of our kits with a 24 month warranty.
