Telecaster Wiring Kit – HS Layout – Pro (CTS, Switchcraft, Mallory)

Telecaster Wiring Kit – HS Layout – Pro (CTS, Switchcraft, Mallory)

£39.99

Professional HS Telecaster kit with a heavy-duty Oak-style 3-way switch.
Includes a 470k resistor mod to perfectly balance neck humbucker and bridge single-coil tones.
Premium CTS 250K pots and USA Mallory 150 series capacitor for elite clarity.
Includes wiring diagram and 24 month warranty.

In stock

Description
FAQ

Telecaster Wiring Kit – HS Layout – Pro (CTS, Switchcraft, Mallory)

The Guitar Anatomy Telecaster Wiring Kit – HS Layout – Pro is a premium electronic overhaul for HS-equipped guitars. This version utilizes a specialized 470k resistor mod to solve the common tonal mismatch between different pickup types. This circuit allows the neck humbucker to remain clear and open while ensuring the bridge single-coil retains its classic sweetness.

Built for the stage and studio, this Pro kit features a heavy-duty Oak-style 3-way blade switch for a positive, reliable action. With premium CTS pots and a USA Mallory 150 capacitor, this kit provides a tour-ready solution for players who demand maximum signal integrity and a perfectly balanced tone.

Part of the Guitar Anatomy wiring kit range, each Pro kit is supplied with a clear wiring diagram to support installation.

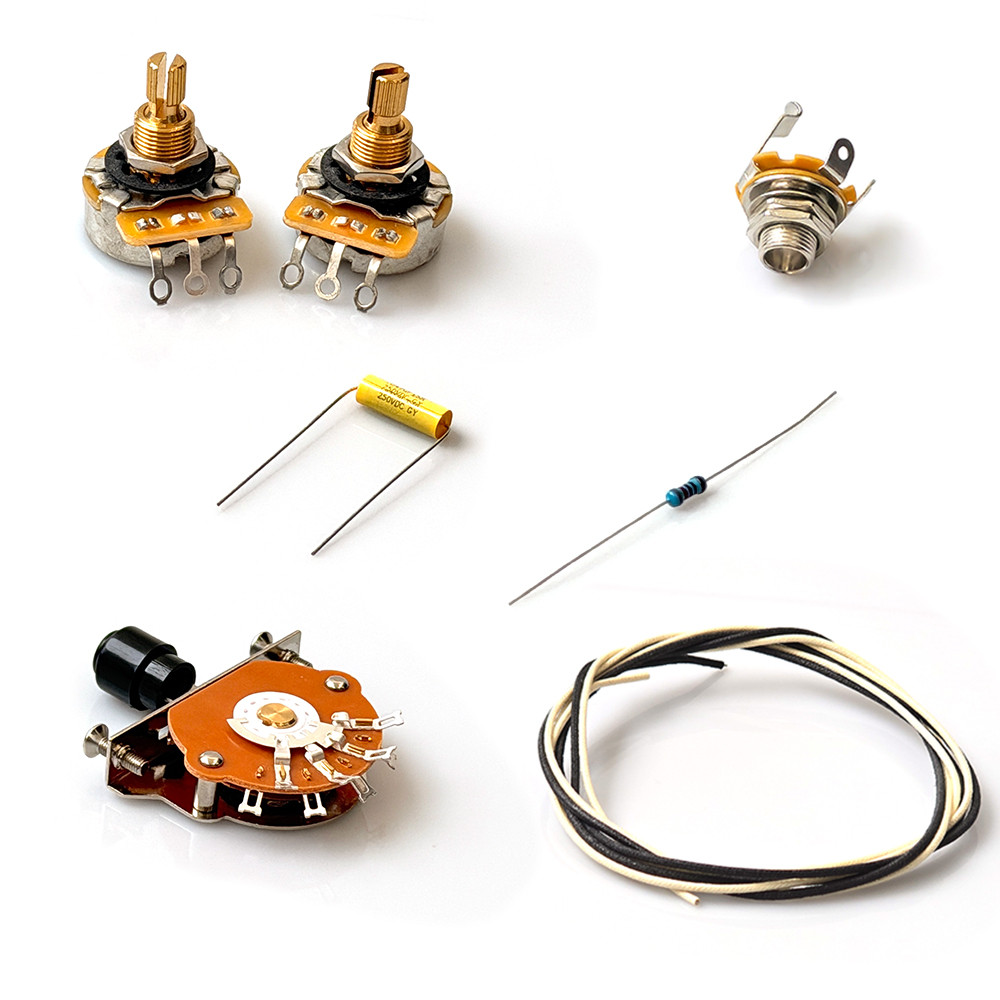

The Pro Kit Includes

• 2 × CTS 250K Full Size Audio Taper Pots
• USA Mallory 150 Series 0.047uF Capacitor
• Vintage Style Cloth Covered Guitar Wire – 22 AWG
• Oak Style 3-Way Pickup Selector Switch
• Switchcraft Jack Socket

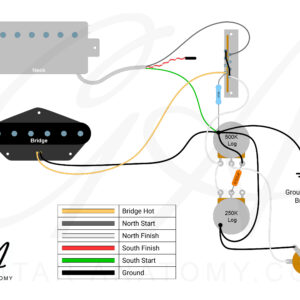

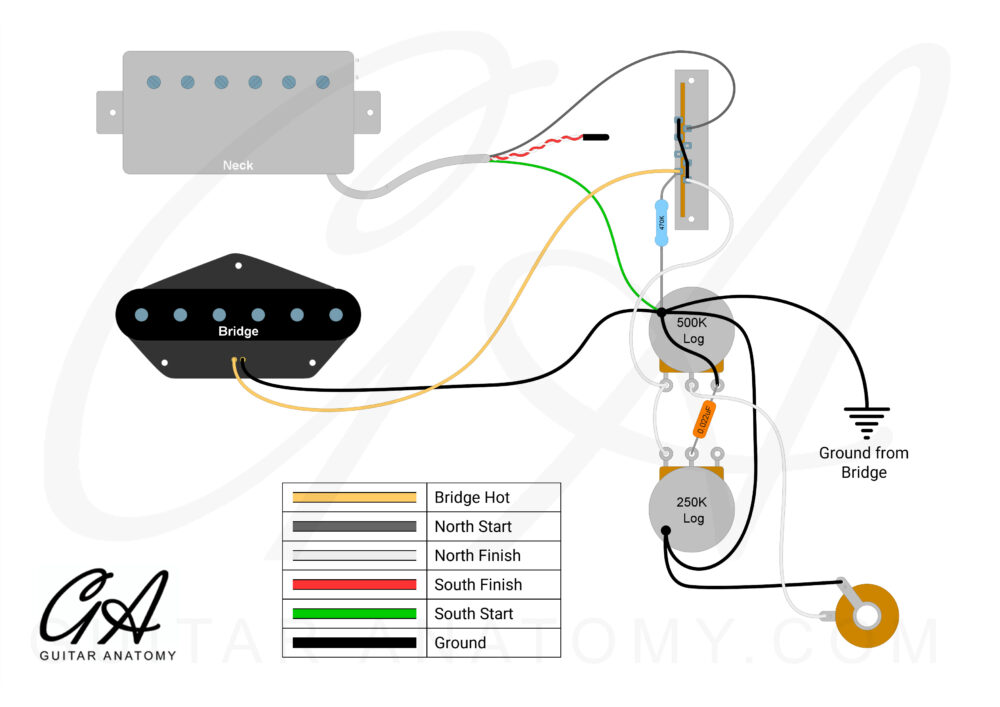

• Wiring Diagram

We back all of our kits with a 24 month warranty.
