SG Wiring Kit – Modern Layout (Alpha Pots)

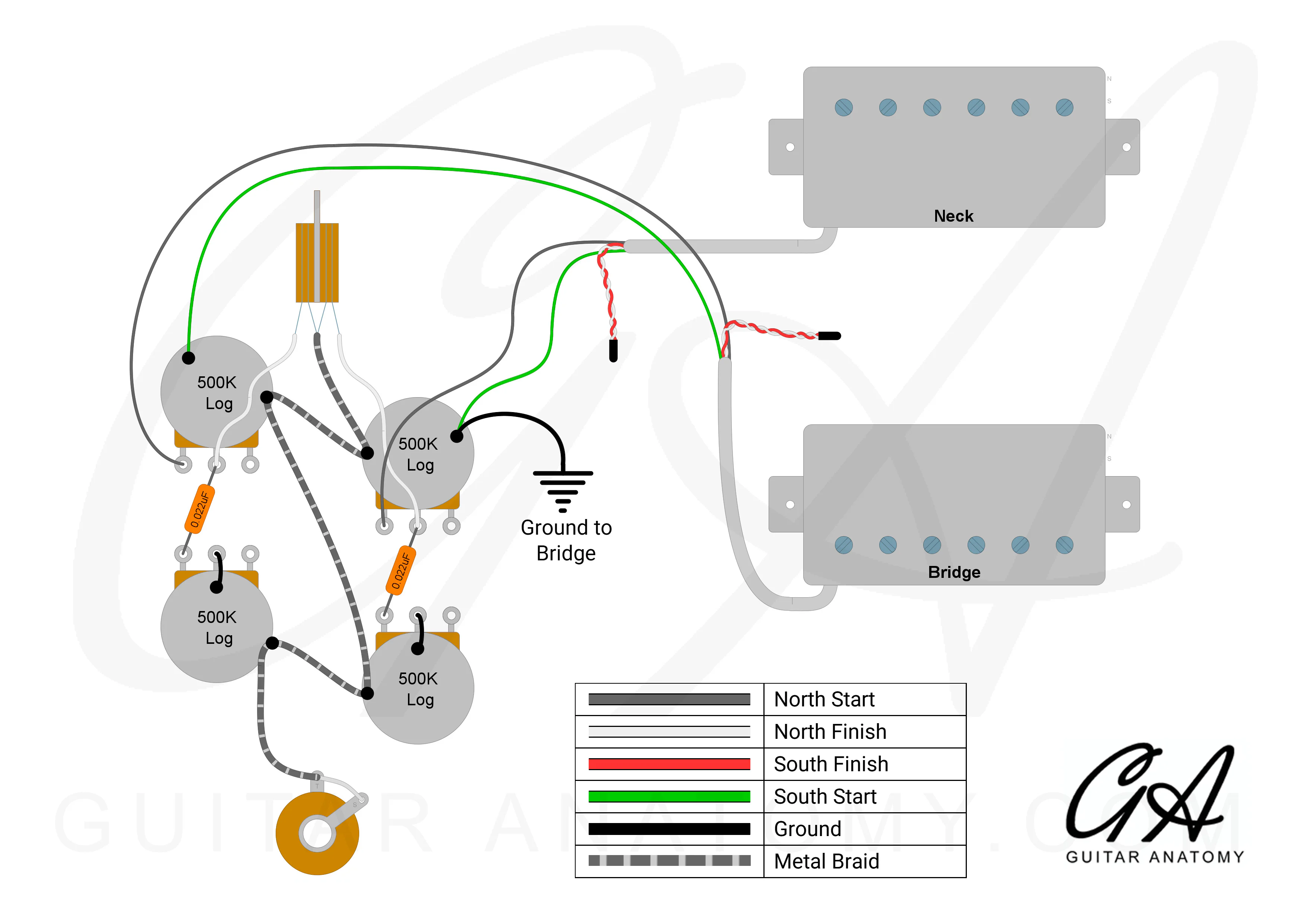

SG Wiring Kit – Modern Layout (Alpha Pots) - Image 2

SG Wiring Kit – Modern Layout (Alpha Pots)

£21.99

SG-style wiring kit featuring the modern control layout.
Direct drop-in replacement for contemporary dual-humbucker setups.
Alpha 500K pots and OP Red 0.022uF smooth tone capacitors.
Includes wiring diagram and 24 month warranty.

In stock

Description
FAQ

SG Wiring Kit – Modern Layout

The Guitar Anatomy SG Wiring Kit is designed around the modern SG wiring configuration, offering the familiar control layout and volume-to-tone interaction found in contemporary instruments.

This kit provides a reliable, high-quality replacement for SG-style guitars, ensuring a smooth volume taper and dependable performance. Braided shielded wire is included for traditional pickup runs, alongside vintage-style cloth push-back wire for clean internal connections.

Part of the Guitar Anatomy wiring kit range, each kit is supplied with a clear wiring diagram for straightforward installation.

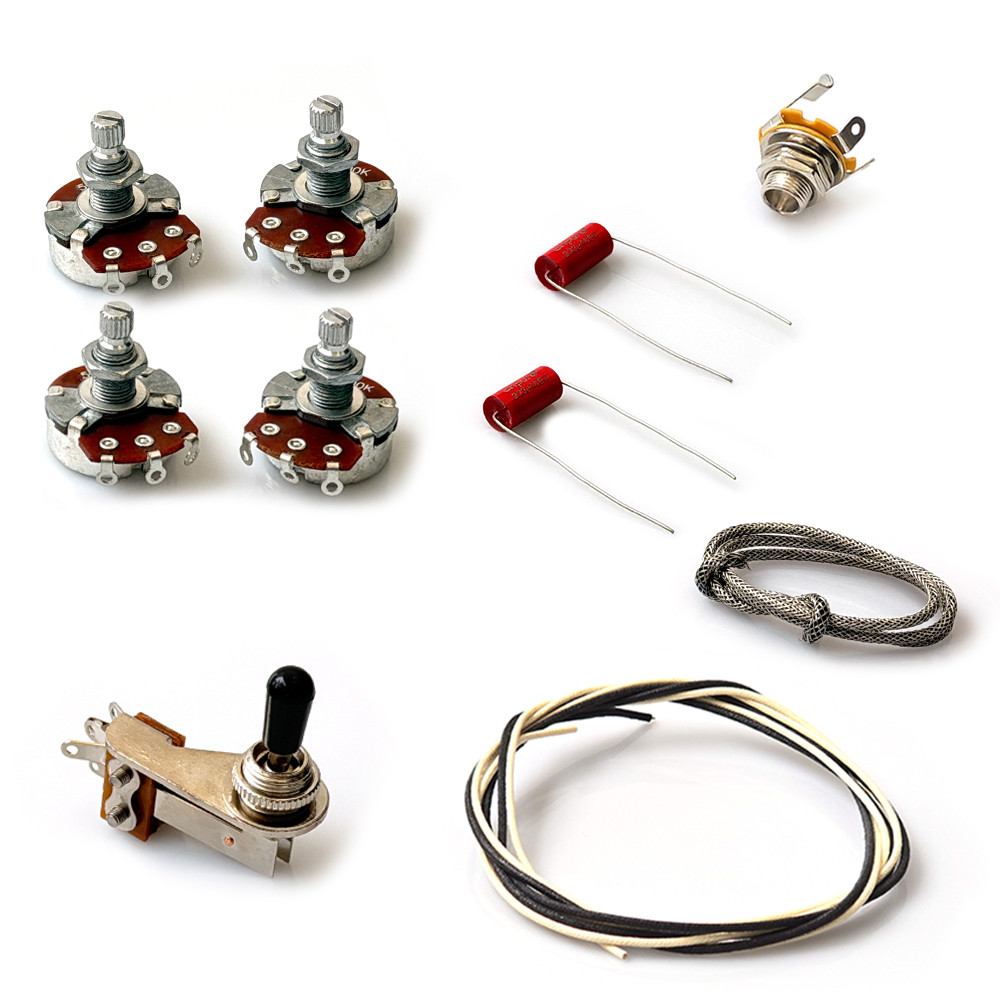

The Kit Includes

4 × Alpha 500K Full Size Audio Taper Pots
2 × OP Red 0.022uF Smooth Tone Audio Capacitors
Braided Metal Shielded Guitar Wire
Vintage Style Cloth Covered Guitar Wire – 22 AWG
3-Way Toggle Pickup Selector Switch
GA Jack Socket

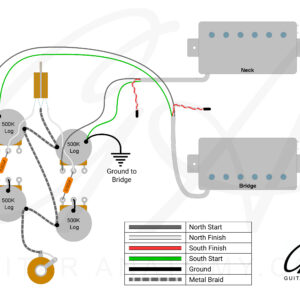

Wiring Diagram

We back all of our kits with a 24 month warranty.
