Precision Bass Wiring Diagrams
Browse our Precision Bass wiring diagrams for classic P-Bass wiring setups. These bass wiring schematics are designed for Precision Bass-style builds, rewiring, repairs, and upgrades, and each diagram can be enlarged or used to shop the matching wiring kit.
Precision Bass Standard Wiring Diagrams

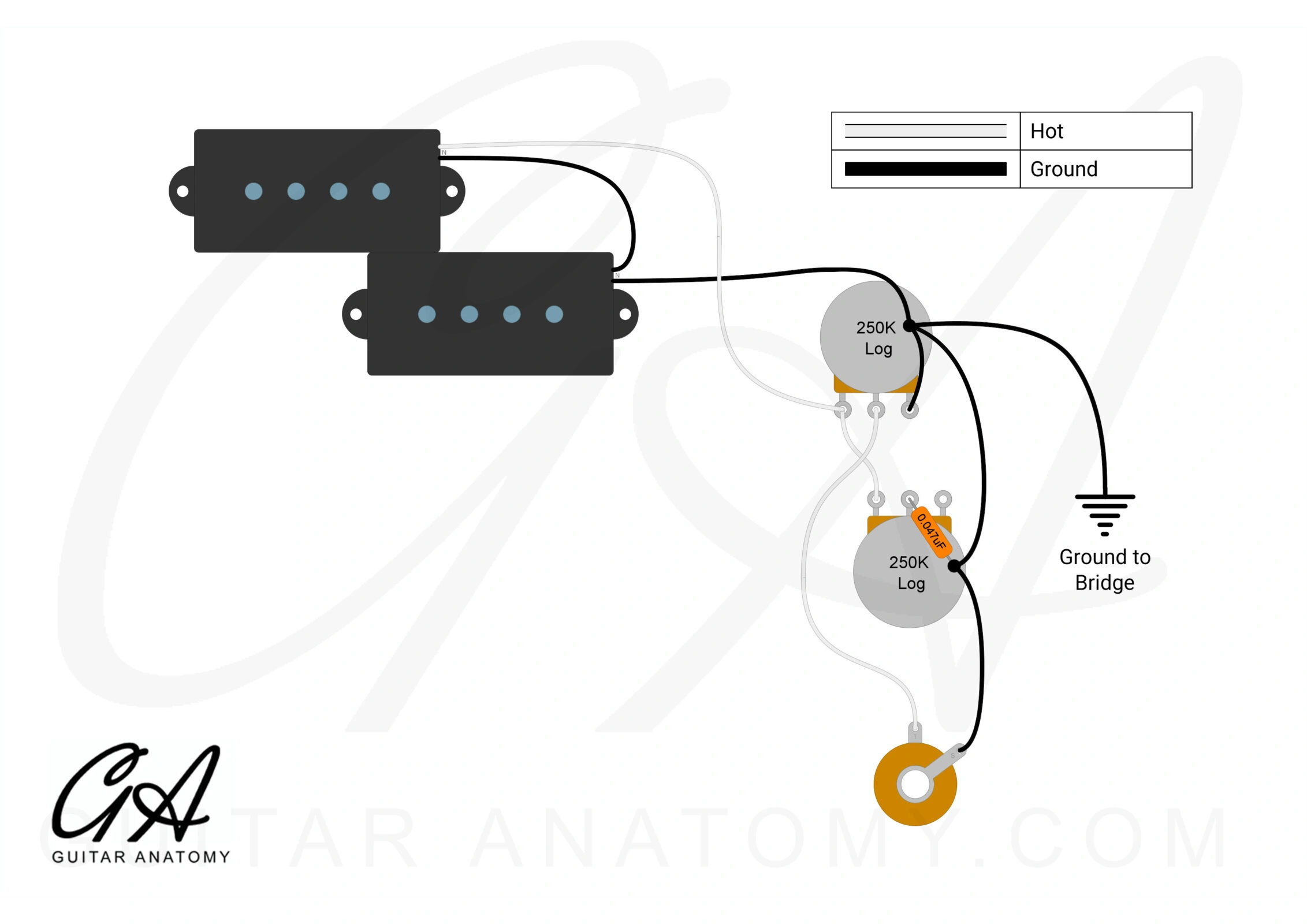

Classic Precision Bass wiring diagram for 1 split-coil pickup, 1 volume control, and 1 tone control. Ideal for Precision Bass-style repairs, rewiring projects, upgrades, and full bass builds.
