Les Paul Wiring Kit – Coil Split Layout (Alpha Pots)

The Guitar Anatomy Les Paul Wiring Kit is built around the classic 50s Les Paul wiring layout, providing independent volume and tone controls for each pickup along with a traditional three-way toggle configuration.

Favoured for its open response and improved treble retention when rolling back the volume, 50s wiring maintains clarity while preserving the familiar feel of a traditional Les Paul-style guitar.

Designed for dual humbucker guitars, this kit includes braided shielded wire for traditional pickup runs along with vintage-style cloth push-back wire for clean internal connections.

Part of the Guitar Anatomy wiring kit range, each kit is supplied with a clear wiring diagram for straightforward installation.

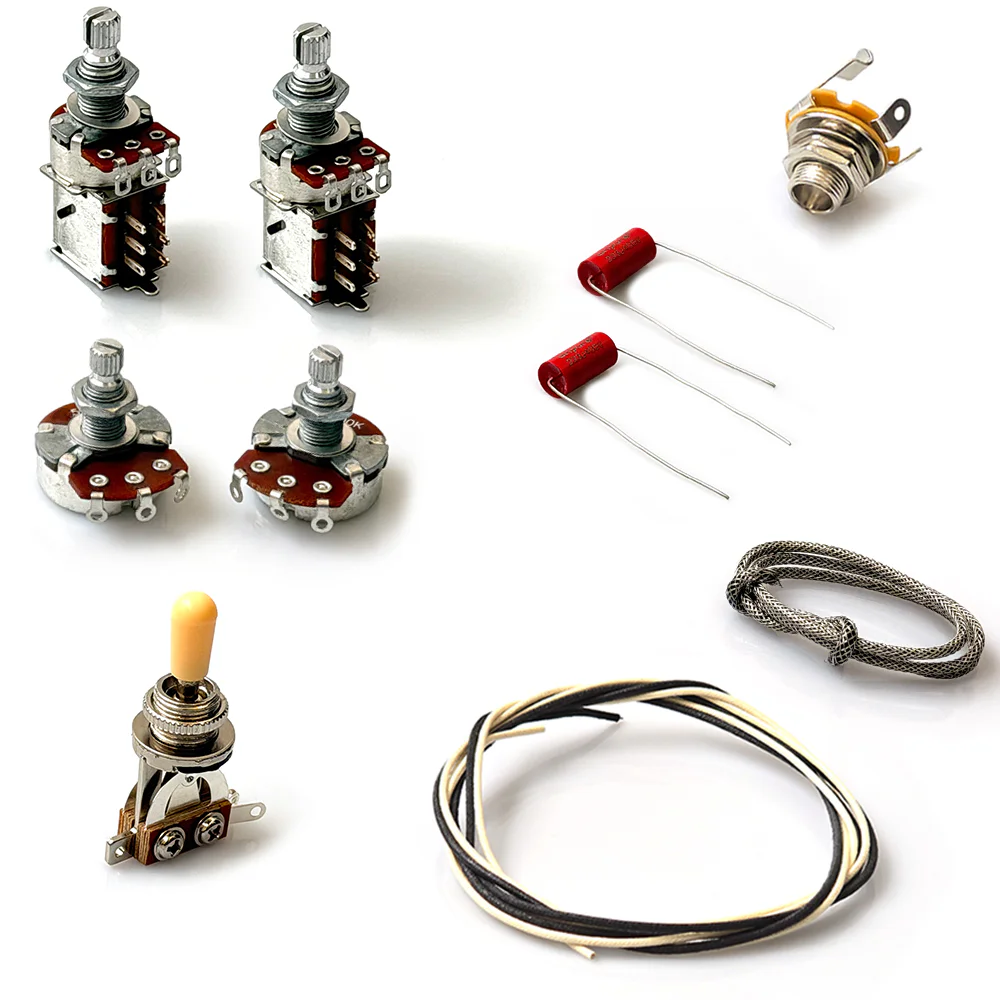

The Kit Includes

• 4 × Alpha 500K Full Size Audio Taper Pots
• 2 × OP Red 0.022uF Smooth Tone Audio Capacitors
• Braided Metal Shielded Guitar Wire
• Vintage Style Cloth Covered Guitar Wire – 22 AWG
• 3-Way Toggle Pickup Selector Switch
• GA Jack Socket

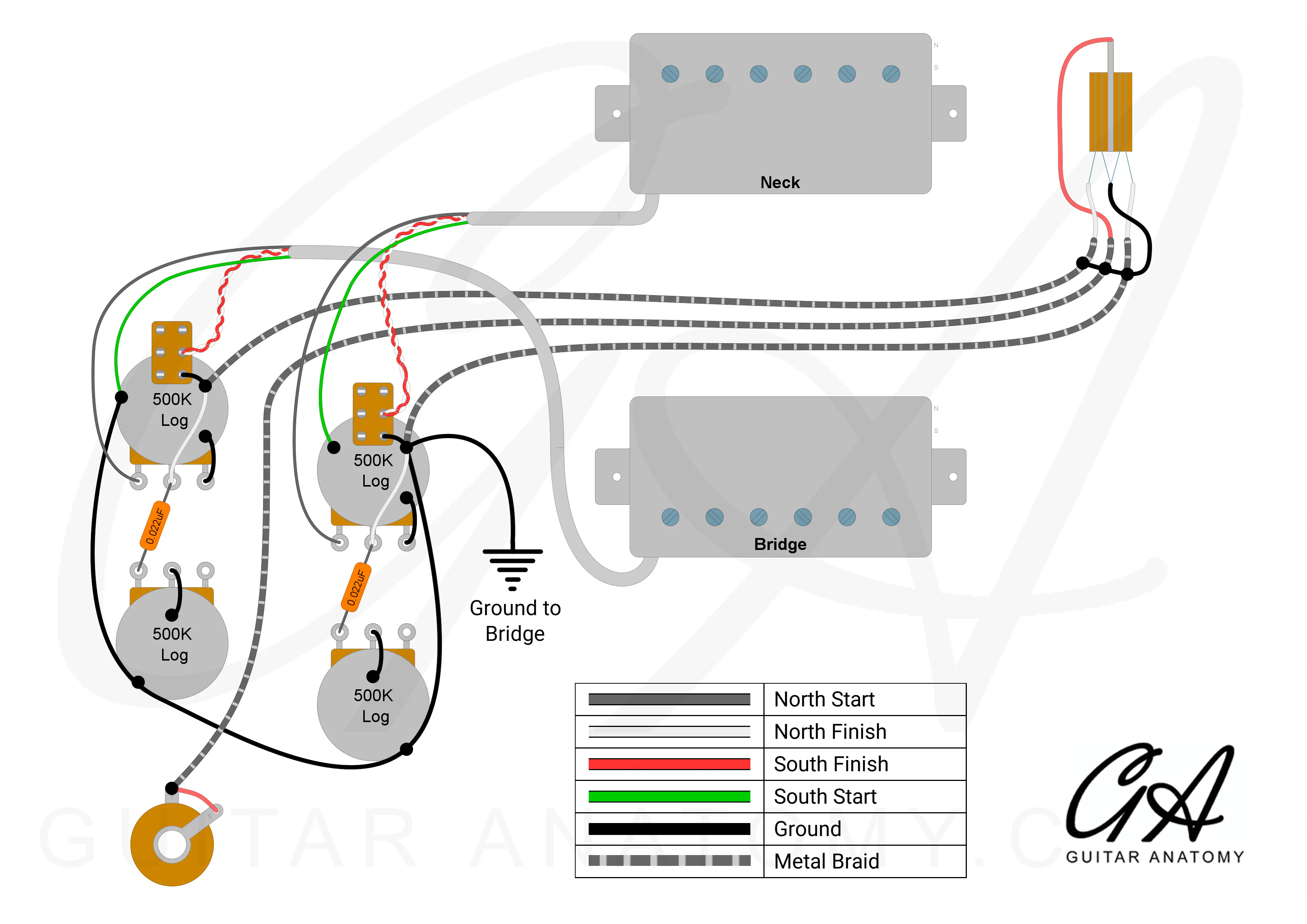

• Wiring Diagram

We back all of our kits with a 24 month warranty.
