ES Wiring Kit – 50s Wiring Layout
The Guitar Anatomy ES Wiring Kit is built around the classic 50s wiring layout, designed for ES-style and semi-hollow guitars with dual humbuckers.
Featuring independent volume and tone controls for each pickup along with a traditional three-way toggle configuration, this setup delivers the open response and treble retention associated with vintage-style wiring.
Designed specifically for semi-hollow builds, the kit includes braided shielded wire for traditional pickup runs along with vintage-style cloth push-back wire for clean internal connections.
Part of the Guitar Anatomy wiring kit range, each kit is supplied with a clear wiring diagram to assist with installation.

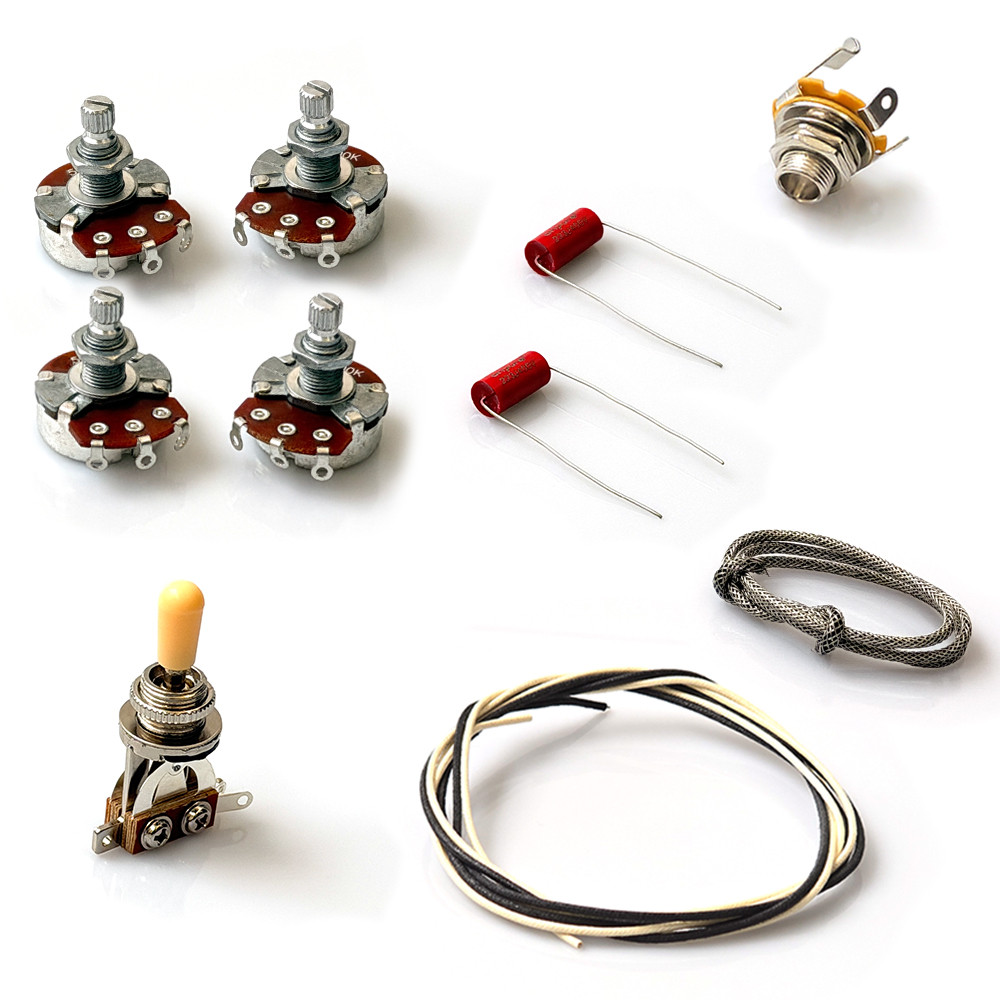

The Kit Includes
• 4 × Alpha 500K Full Size Audio Taper Pots
• 2 × OP Red 0.022uF Smooth Tone Audio Capacitors
• Braided Metal Shielded Guitar Wire
• Vintage Style Cloth Covered Guitar Wire – 22 AWG
• 3-Way Toggle Pickup Selector Switch
• GA Jack Socket

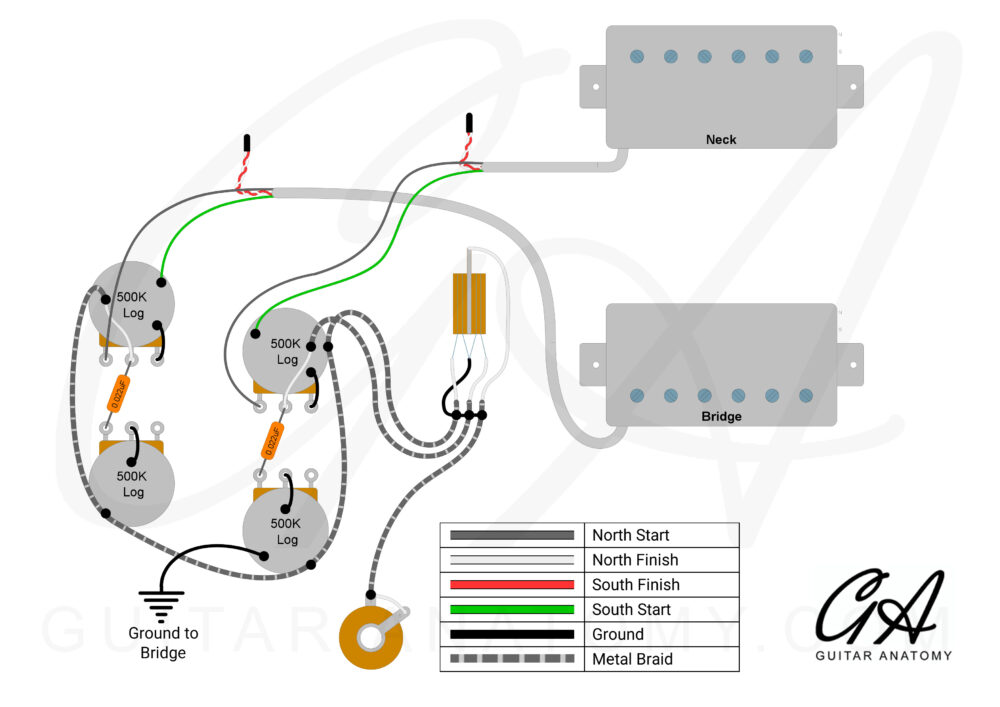

• Wiring Diagram
We back all of our kits with a 24 month warranty.
